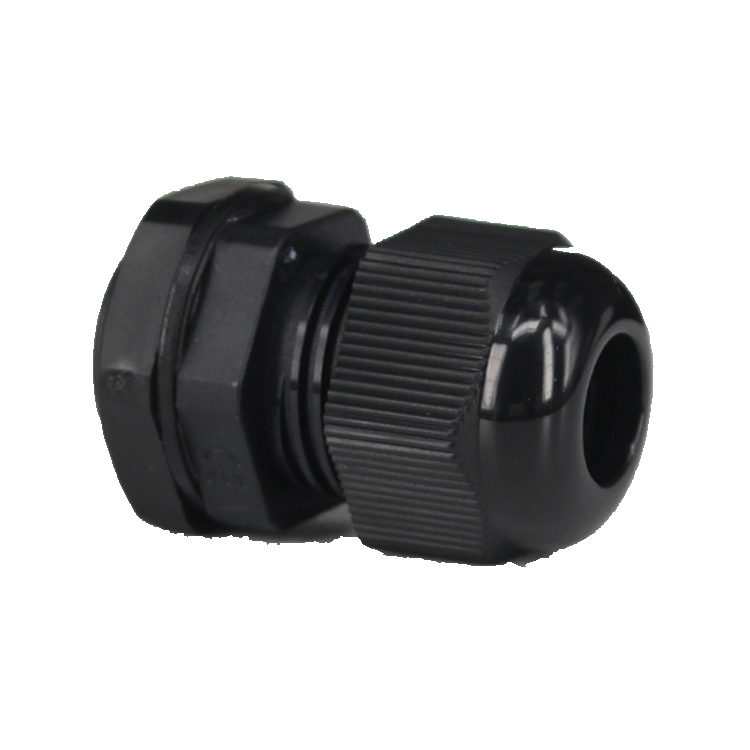

Product description: Cable gland plastic Nylon material PA66/PA6
INQUIRY

电缆接头Nylon Cable Glands-PG
材料：UL批准的尼龙PA66（可燃性UL94V-2）用于A、C、E零件（接受定制可燃性UL94V-0）。B、D零件用EPDM橡胶（可定制耐高温橡胶、耐强酸强碱等）
Material: UL approved nylon PA66 (Flammability UL94V-2) for A, C, E parts (accept to customize flammability UL 94V-0). EPDM rubber for B,D parts (accept to customize resist high temperature rubber, resist strong acid / alkali, etc.)
防护等级IP degree：IP68
工作温度Working temperature: -40℃ to 100℃
特点：独特的卡爪和密封螺母设计，使电缆保持平稳，电缆使用直径更大，拔出电缆更困难。耐盐水、弱酸、酒精、油、油脂等。
Feature: The special design for claw and seal nut can hold cable steady, the usage of cable diameter wider, it's harder to pull cable out. Resistant salt water, weak acid, alcohol, oil, grease, etc.
颜色：黑色，灰色，其他颜色可根据要求提供。
Color: Black, Grey, other colors are available upon request.

型号	电缆直径	螺纹直径	螺纹长度	扳手直径
Type	Cable diameter（mm）	Thread diameter C1（mm）	Thread length C2 (mm)	Wrench diameter（mm）
PG7	3-6.5	12.5	8	16	Standard type
PG9	4-8	15.2	8	19
PG11	5-10	18.6	8	22
PG13.5	6-11	20.4	10	24
PG16	10-13	22.5	10	27
PG19	12-15	24	10	27
PG21	13-18	28.3	10	33
PG25	16-21	30	11	35
PG29	18-25	37	12	42
PG36	22-32	47	14	52
PG42	32-38	54	14	60
PG48	37-44	59.3	15	64
PG63	42-50	71	28	77
PG7	2-5	12.5	8	16	Rubber ring thicken type
PG9	2-6	15.2	8	19
PG11	3-7	18.6	8	22
PG13.5	5-9	20.4	10	24
PG16	7-12	22.5	10	27
PG19	10-13	24	10	27
PG21	9-16	28.3	10	33
PG25	13-18	30	11	35
PG29	13-20	37	12	42
PG36	20-26	47	14	52
PG42	25-31	54	14	60
PG48	29-35	59.3	15	64
PG63	32-40	71	28	77

备注：以上只是尺码的一部分，如果您没有找到您需要的尺码，请告诉我们，我们会帮您找到。
Remark: Above are just part of size, if you didn't find size you need, pls let us know, we will help you to find.
