Circle Cable Clips

Cable clip

cable clip
nail cable clip
PE
double nail
Product description: Cable clip double nai PE material
INQUIRY

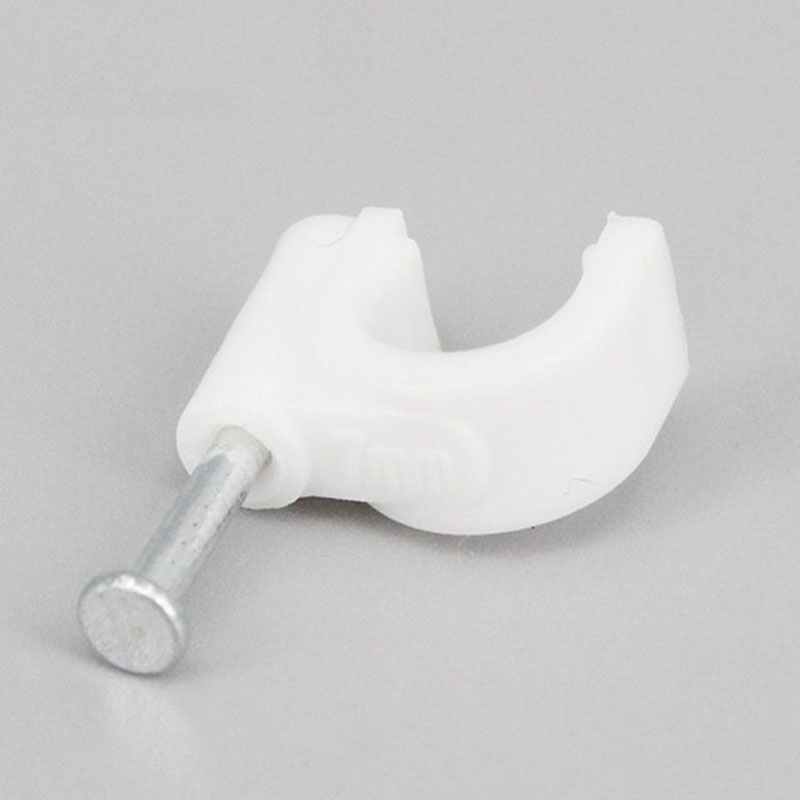

圆形线卡Circle Cable Clips
材质：PE或PP，带钢钉。
Material: PE or PP, with steel nail.
应用：将电缆放在夹子下面，用锤子将钉子钉在墙上固定电缆
Application: Put the cable under the clip and hammer the nail into wall to fix the cable.

型号	高(mm)	半径(mm)	钉子尺寸
Type	H(mm)	R(mm)	Nail size(mm)
4mm	5.3	4	1.7*15
5mm	6.5	5	1.7*15
6mm	8.1	6	1.7*17
7mm	8.7	7	1.8*19
8mm	9.6	8	1.9*21
9mm	10.7	9	2.0*22
10mm	11.7	10	2.05*25
12mm	12.8	12	2.05*27
14mm	14.9	14	2.4*32
16mm	16.9	16	2.5*35
18mm	20.8	18	2.5*37
20mm	23.6	20	2.8*42
22mm	25	22	2.8*48
25mm	27.7	25	3.2*48
30mm	33.1	30	3.2*53
35mm	36.6	35	3.2*58
40mm	45.2	40	3.4*60
50mm	52.8	50	5.0*90

备注：以上只是尺码的一部分，如果您没有找到您需要的尺码，请告诉我们，我们会帮您找到。
Remark: Above are just part of size, if you didn't find size you need, pls let us know, we will help you to find.
